ZONESUN 220V or 110V GFK-160 Digital Control Liquid Filling Machine Small Portable Electric Liquid Water Filling Machine supply

Customs Data
  • 1 - 99 Boxes
    US $85.00
  • 100 - 199 Boxes
    US $75.00
  • 200 - 799 Boxes
    US $70.00
  • >=800 Boxes
    US $49.00
Model Number:
GFK-160
Contact Supplier Start Order
Loading...
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Bottles, Cartons
Packaging Material:
Paper
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
220V or 110V
Power:
100W
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZONESUN
Dimension(L*W*H):
41 cm * 30 cm * 22 cm
Weight:
6kg
Certification:
CE
After-sales Service Provided:
No overseas service provided
Name:
filling machine
filling range:
5-3500ml
max flow rate:
3.2L/min
packaging type:
bottle
Supply Ability
Supply Ability:
999 Set/Sets per Day
Packaging & Delivery
Packaging Details
Our products are packed in cartons. We will check that if the machine can run before it is sent out. When you receive the goods, please open the package to check out if the goods are in good condition before the courier. If the cartons are damaged or other situations happen, please contact us in time.
Port
Guangzhou Port
Lead Time :
Quantity(Boxes) 1 - 50 >50
Est. Time(day) 7 To be negotiated
Video Description
Product Description

GFK series numerical control liquid filling machine uses micro-computer to control the mini-pump on filling time and the rotation rate of electric motor so that the machine can fill the liquid fluently and at high accuracy.


Filling range:5-3500mL Voltage:AC110V/220V  Power:30W   Warranty:1 years
Anti-dripping memory function without electricity.
Automatic counting stainless steel self-suck and chemical pump.
Widely used in medical, chemistry, food, beverage, edible oil, and cosmetics, etc.
Can be used to fill many different types of clear thin liquid,including water, olive oil, fuel, drinks, vinegar, milk etc.

Voltage:AC110V-140V/180V-260V
Power:30W
Max Flow Rate:3.2L/min
Max Suck Distance:2m
Repeat Error:<0.5%
Package Dimension:400×380×200(mm)
Machine Weight:5.5kg / 12.1Lbs
Filling Volume Range:5ml-3500ml
Anti-dripping Function:Available
Memory Function without Electricity:Availabl
Machine Size:350 X 270 X 150(mm)
Diameter of Filling Nozzle:Φ 8mm
Suitable Soft Tube:17#(interior diameter: 6.4mm, thickness: 1.6mm, max pressure0.24Mp)
Note:Different liquid needs to choose different material of tube. The tube provided by us is silicone tube.

Main Features

1.Imported single-chip control,high efficiency,low power consumption
2.Automatic counting,control the filling quantity effectively.
3.LCD display,touch screen panel is easy to operate.
4.Filling Accuracy is high,precise volume.
5.Product working performance is stable,long use life.
6.Self-suck function,don't need to pour.
7.Pump can stand the acid and alkali.
8.Anti-dripping design
9.Reasonable construction design,stanless steel shelf meed GMP requirement.

product show
Our Company

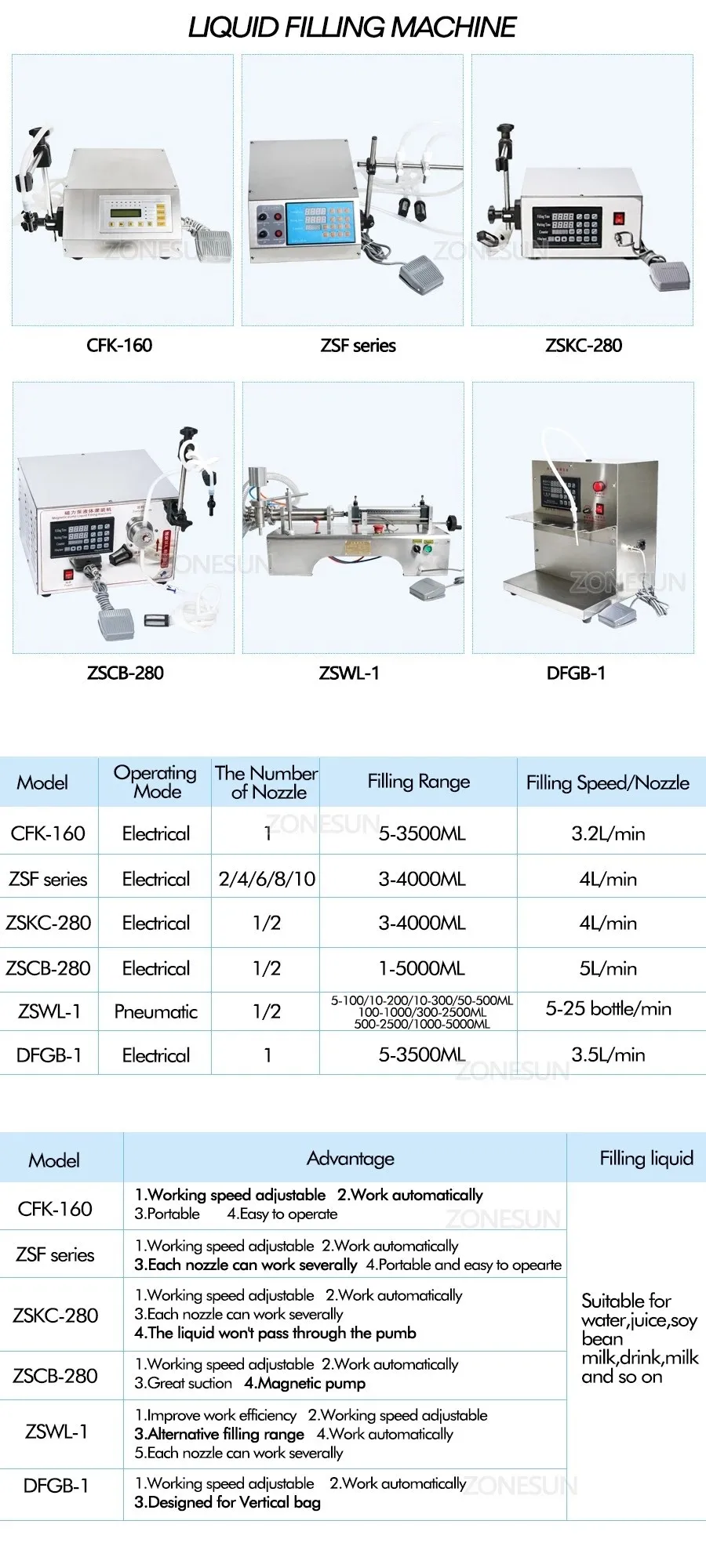

Related Products
