ZONESUN double heads honey stick Cream Shampoo moisturizer lotion Cosmetic oil honey food paste filling machine(10-300ml) supply

  • >=1 Sets
    US $860.00
Power:
0
Model Number:
paste filling machine
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Barrel, Bottles, Case, Pouch, Stand-up Pouch
Packaging Material:
Glass, Metal, Plastic
Automatic Grade:
Semi-Automatic
Driven Type:
Pneumatic
Voltage:
0
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZONESUN
Dimension(L*W*H):
130cm*39cm*37cm
Weight:
55kg
Certification:
CE SGS
After-sales Service Provided:
Free spare parts, No overseas service provided
Warranty:
1 Year
Supply Ability
Supply Ability:
9999 Set/Sets per Day
Packaging & Delivery
Packaging Details
Our products are packed in cartons. We will check that if the machine can run before it is sent out. When you receive the goods, please open the package to check out if the goods are in good condition before the courier. If the cartons are damaged or other situations happen, please contact us in time.
Port
Guangzhou
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(day) 7 To be negotiated
Video Description
Product Description

if you need cheaper shipping .pls feel free to contact us
Machine can offer customized according to customer request

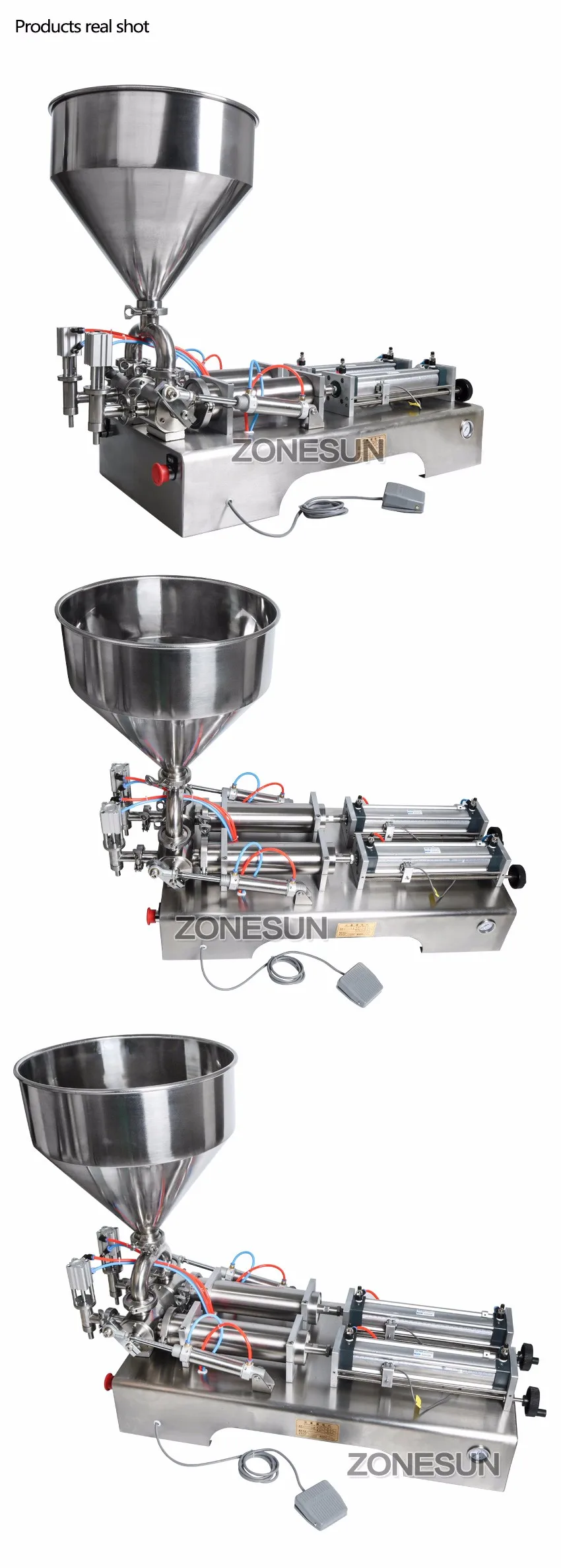

                           Double heads Semi-automatic Cream Filling Machine

Features:
This machine adopts pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit.
1.Reasonable design, compact shape, simple operation.
2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade
3. Filling volume, filling speed can be adjustable, filling accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device.


Application:
Suitable for medicine,daily life products, food and special industries.And it is an ideal device for adhesive fluid filling.

Principle

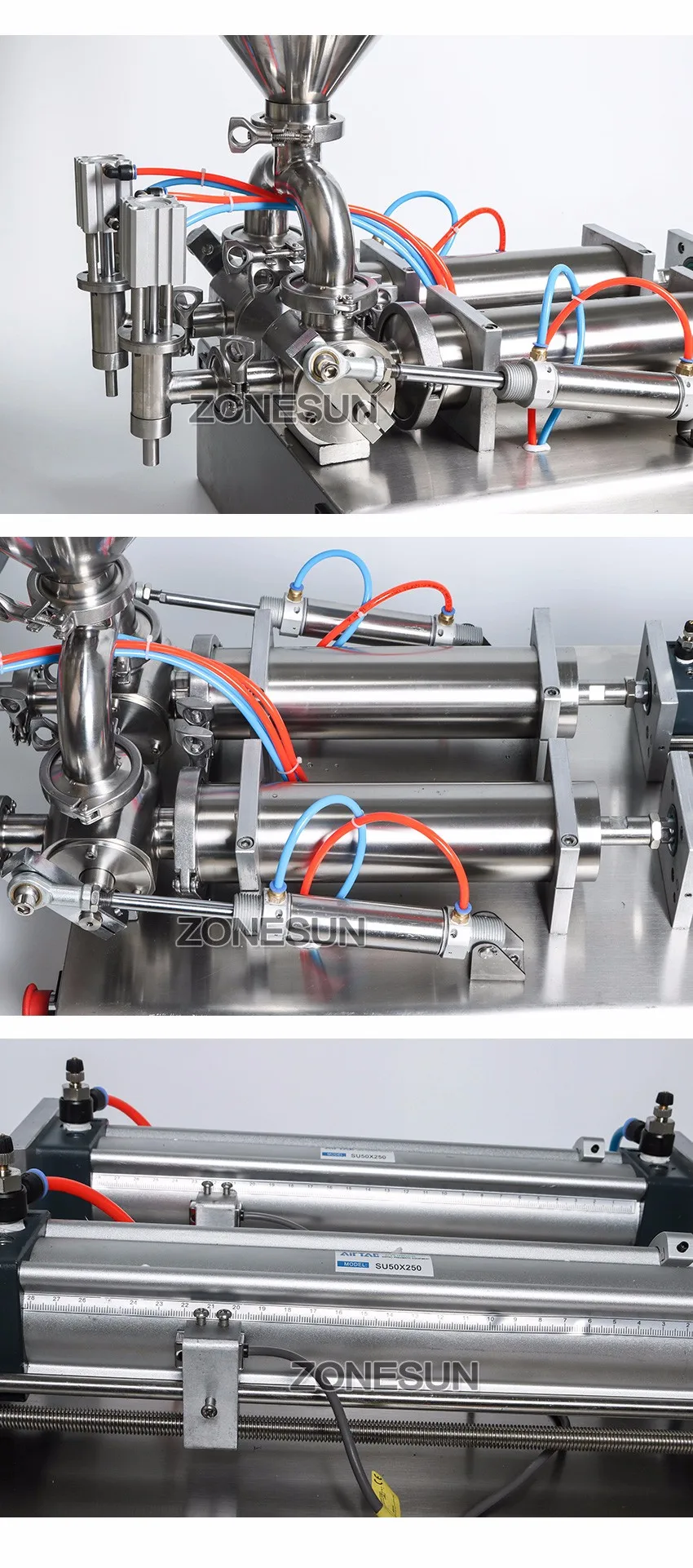

This series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
Rational design of the aircraft, model compact, easy to operate,

Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements..
Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.


Technical Parameters:
Machine model
5-100
10-300
50-500
100-1000
300-2500
1000-5000
Filling speed
10-35n/min(tak0e water for example)
Filling range
5-100ml
10-300ml
50-500ml
100-1000ml
300-2500ml
1000-5000ml
Air pressure
0.4~0.6mpa
Filling error
±1%
Machine size
806(L) ×
180(W) ×
690(H)mm



880(L) ×
230(W) ×
665(H)mm
880(L) ×
230(W) ×
665(H)mm
1065 (L) ×
230(W) ×
665(H)mm
1250(L) ×
400(W) ×
300(H)mm
1390(L) ×
420(W) ×
380(H)6mm
Machine weight
55kg
60kg
60kg
65kg
85kg
95kg
