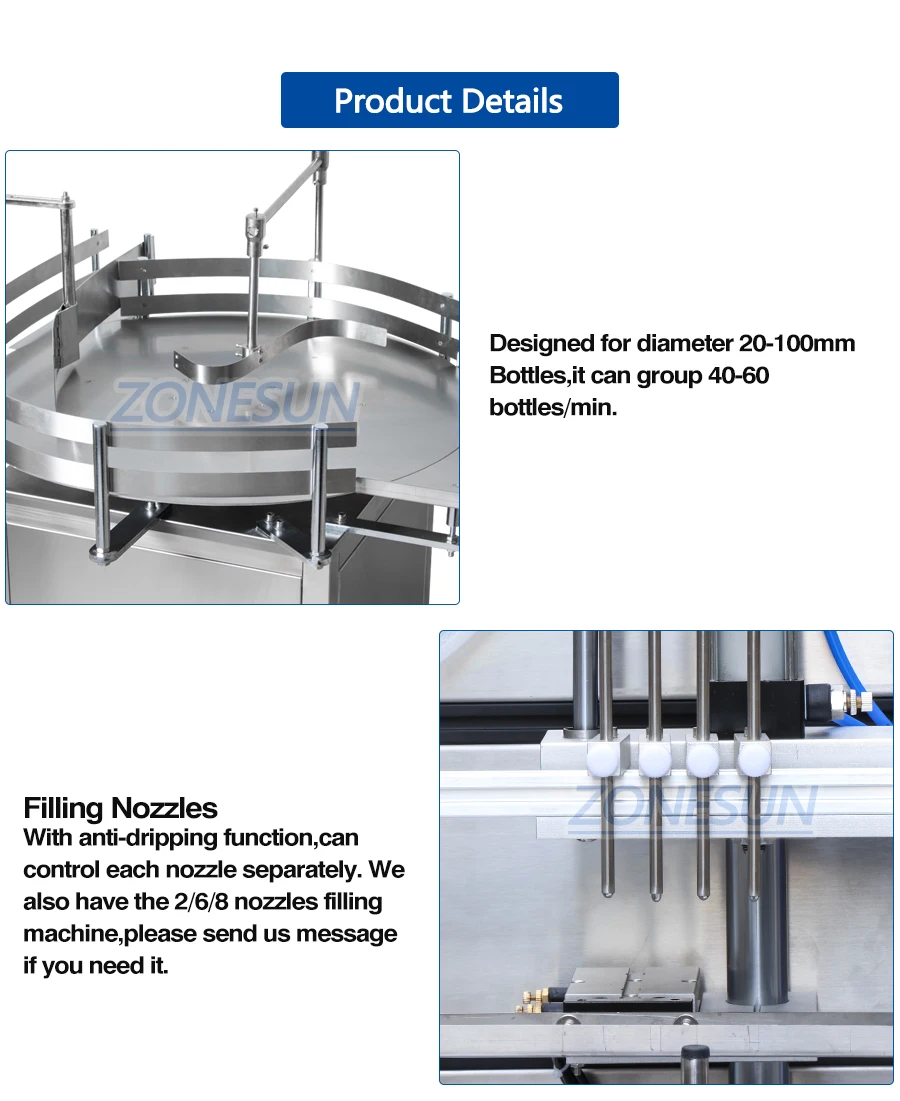

Designed for diameter 20-100mm Bottles,it can group 40-60 bottles/min.
Overview
Quick Details
- Machinery Capacity:
-
Other
- Filling Accuracy:
-
≤±1%
- Packaging Material:
-
wood
- Filling Material:
-
Other, Milk, Water, Oil, Juice
- Type:
-
Filling Machine
- Applicable Industries:
-
Food & Beverage Factory, Food Shop, Food & Beverage Shops
- After Warranty Service:
-
Video technical support, Online support, Spare parts
- Local Service Location:
-
Romania
- Showroom Location:
-
None
- Condition:
-
New
- Application:
-
Food, Beverage
- Packaging Type:
-
Box
- Automatic Grade:
-
Full Automatic
- Driven Type:
-
Electric and pneumatic
- Voltage:
-
110V/220V
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
ZONESUN
- Dimension(L*W*H):
-
Customized
- Weight:
-
About 1500kg
- Certification:
-
CE
- After-sales Service Provided:
-
Online support, Video technical support
- Warranty:
-
1 Year
- Key Selling Points:
-
Full Automatic
- Marketing Type:
-
New Product 2020
- Machinery Test Report:
-
Not Available
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor, Pressure vessel, Pump, PLC, Gear, Bearing
Supply Ability
- Supply Ability:
- 99 Set/Sets per Year
Packaging & Delivery
- Packaging Details
- Our products are packed in boxs. We will check that if the machine can run before it is sent out. When you receive the goods, please open the package to check out if the goods are in good condition before the courier. If the boxs are damaged or other situations happen, please contact us in time.
- Port
- Guangzhou
- Picture Example:
-
- Lead Time :
-
Quantity(Sets) 1 - 1 >1 Est. Time(days) 30 To be negotiated
Product Description
Description:

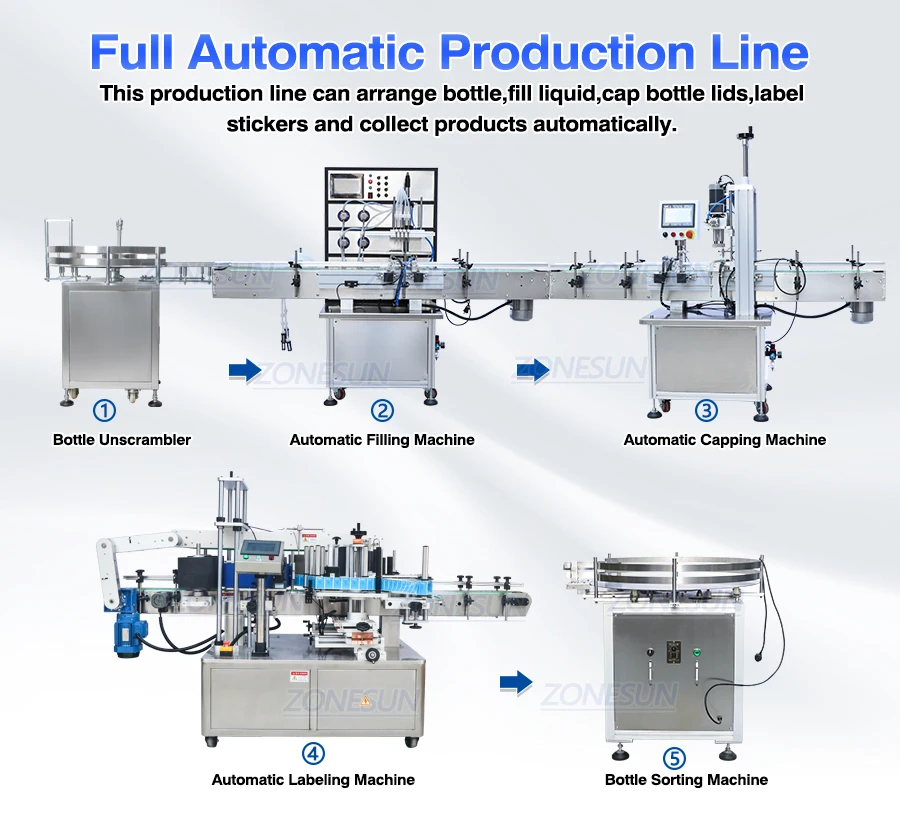

This production line can automatically arrange bottles,fill liquid,cap bottle,label bottle and automatic collect bottles it helps to save production process and improve working efficiency.We can offer custom service for different kinds of materials,make these machines can match your material better. It is widely used in food,beverage,cosmetics and pharmaceutical industries.

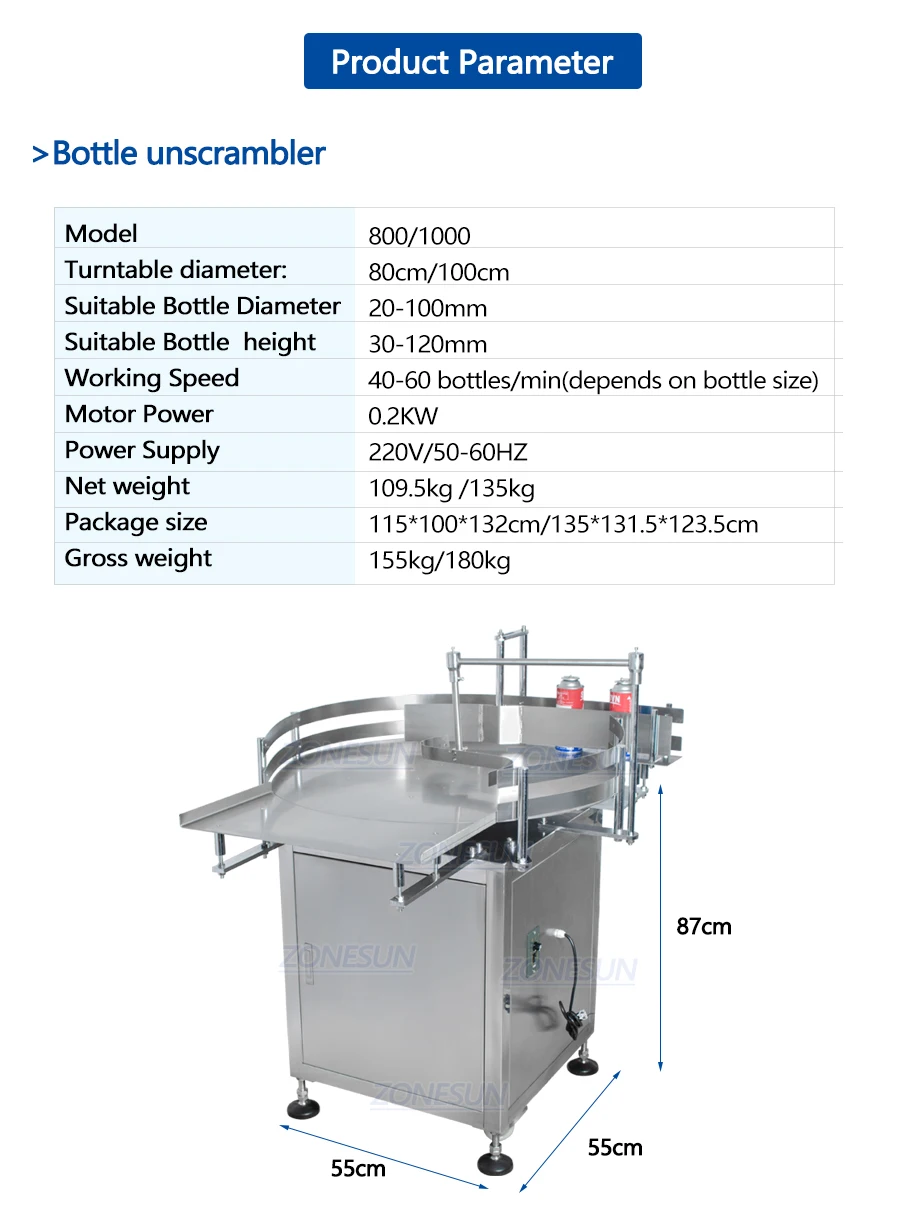

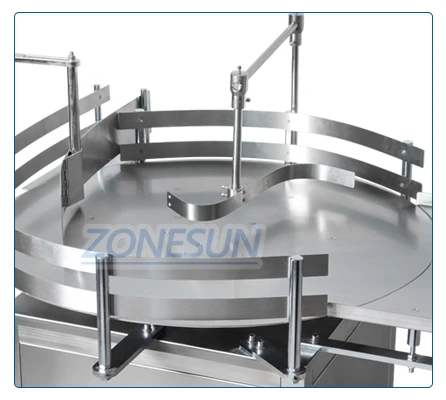

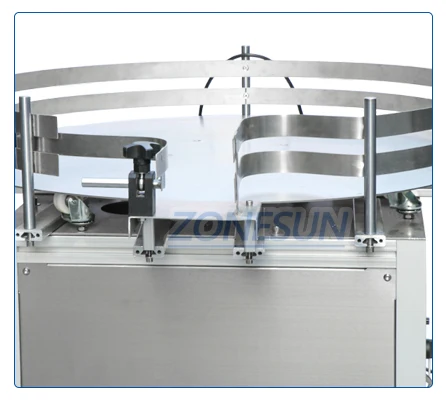

Model | 800/1000 | ||||||
Turntable diameter | 800mm/1000mm | ||||||
Suitable Bottle Diameter | 20-100mm | ||||||
Suitable Bottle Height | 30-120mm | ||||||
Working Speed | About 40-60 bottles/min(depends on bottle size) | ||||||
Motor Power | 2000W | ||||||
Power Supply | 220V/50-60HZ | ||||||
Net weight | About 109.5kg /135kg | ||||||
Gross weight | About 155kg/180kg | ||||||
Package size | About 1150*1000* 1320mm/1350*1315*1235mm | ||||||

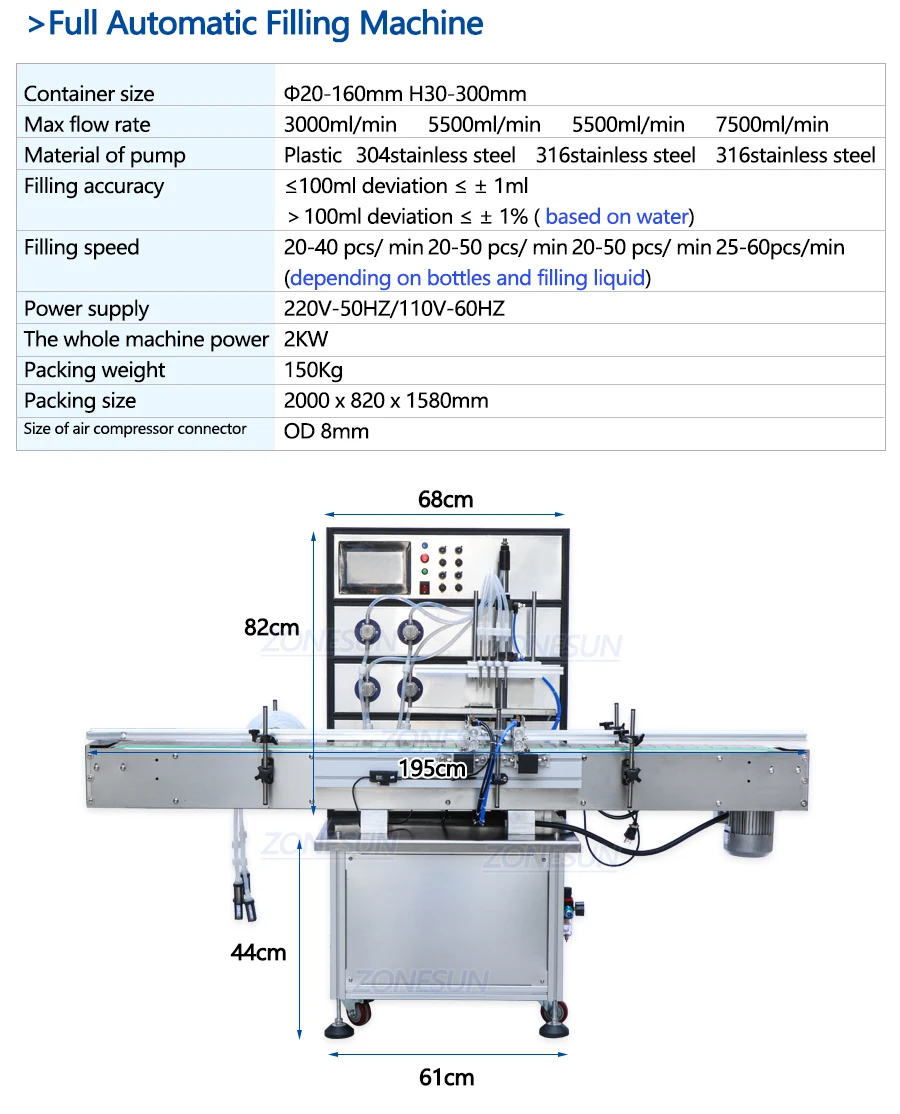

Container size | φ20-160mm H30-300mm | ||||||
Max flow rate | 5500ml/min | 5500ml/min | 7500ml/min | ||||
Material of pump | 304stainless steel | 316stainless steel | 316stainless steel | ||||
Flling accuracy | ≤100ml deviation≤±1ml > 100ml deviation≤±1% ( based on water) | ||||||
Flling speed | 20-50pcs/min | 20-50pcs/min | 25-60pcs/min | ||||
(depending on bottles and flling liquid) | |||||||
Power supply | 220V-50HZ/110V-60HZ | ||||||
The whole machine power | 2000W | ||||||
Packing weight | About 150kg | ||||||
Packing size | About 2000*820*1580mm | ||||||
Size of air compressor connector | OD8mm | ||||||

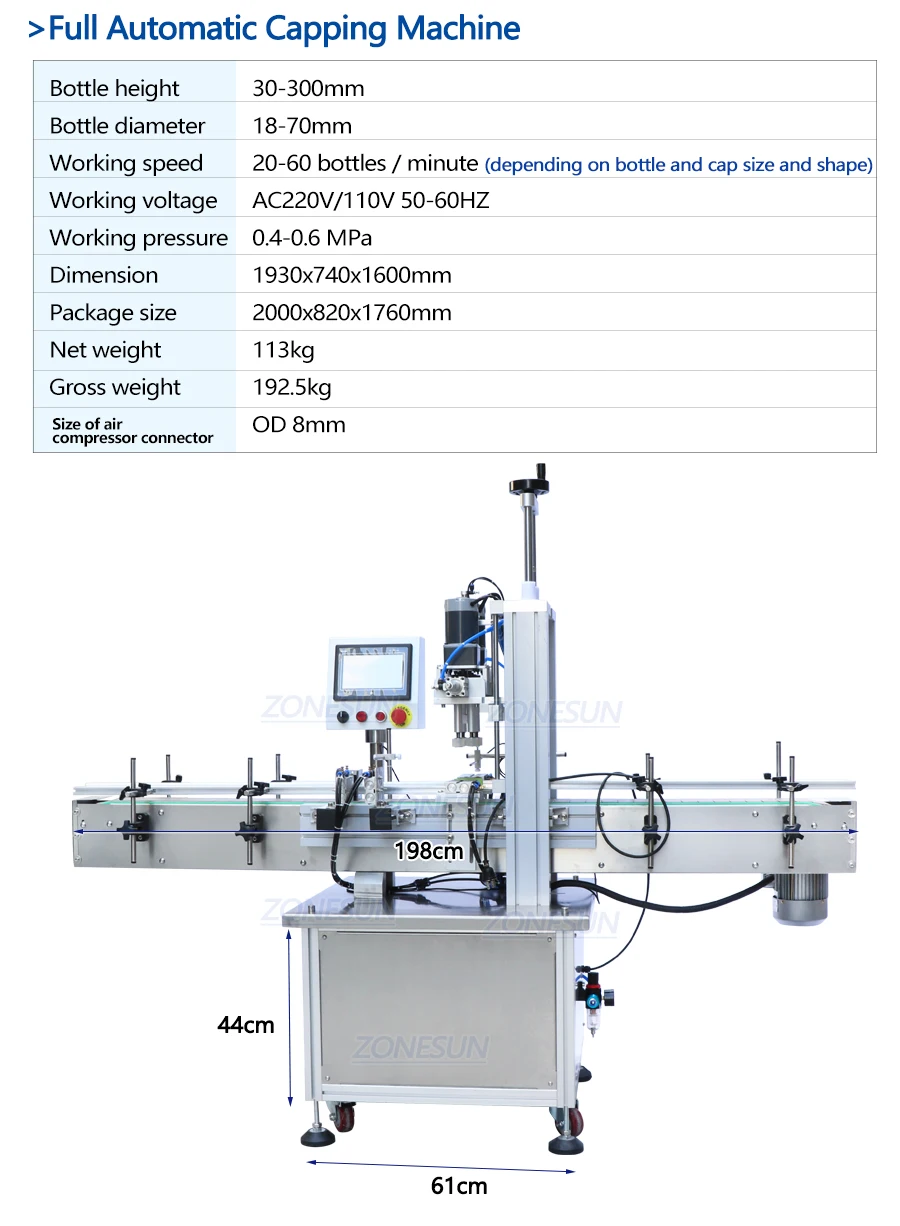

Bottle height | 30-300mm | ||||||
Bottle diameter | 18-70mm | ||||||
Working speed | 20-60 bottles / minute (depending on bottle and cap size and shape) | ||||||
Working voltage | AC220V/110V 50-60HZ | ||||||
Working pressure | 0.4-0.6 MPa | ||||||
Dimension | About 1930*740*1600mm | ||||||
Package size | About 2000*820*1760mm | ||||||
Net weight/Gross weight | About 113kg/192.5kg | ||||||
Size of air compressor connector | OD 8mm | ||||||

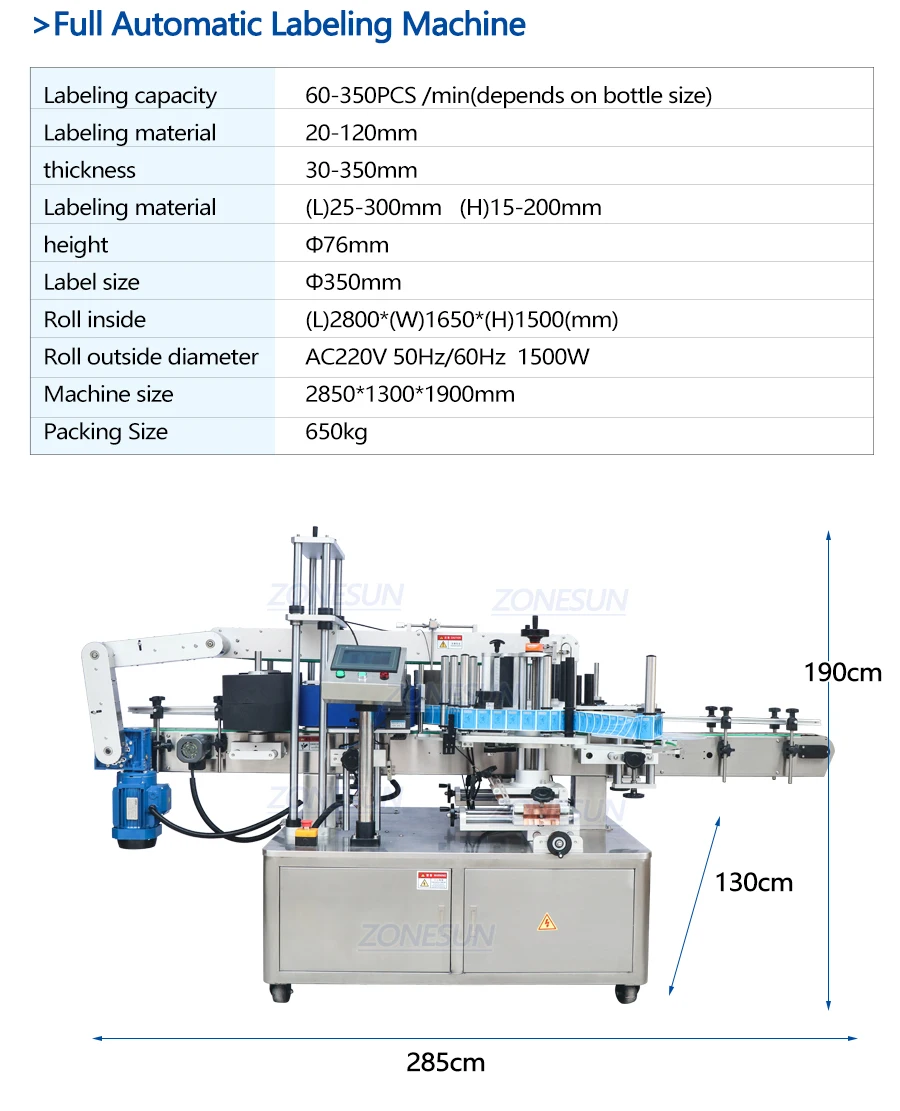

Labeling capacity | 60-350PCS /min(depends on bottle size) | ||||||
Labeling material thickness | 20-120mm | ||||||
Labeling material height | 30-350mm | ||||||
Label size | (L)25-300mm (H)15-200mm | ||||||
Roll inside | φ76mm | ||||||
Roll outside diameter | φ350mm | ||||||
Power supply | AC220V 50Hz/60Hz 1500W | ||||||
Packing Size | About 2850*1300*1900mm | ||||||
Machine size | About 2800*1650*1500mm | ||||||
Machine weight | About 650kg | ||||||

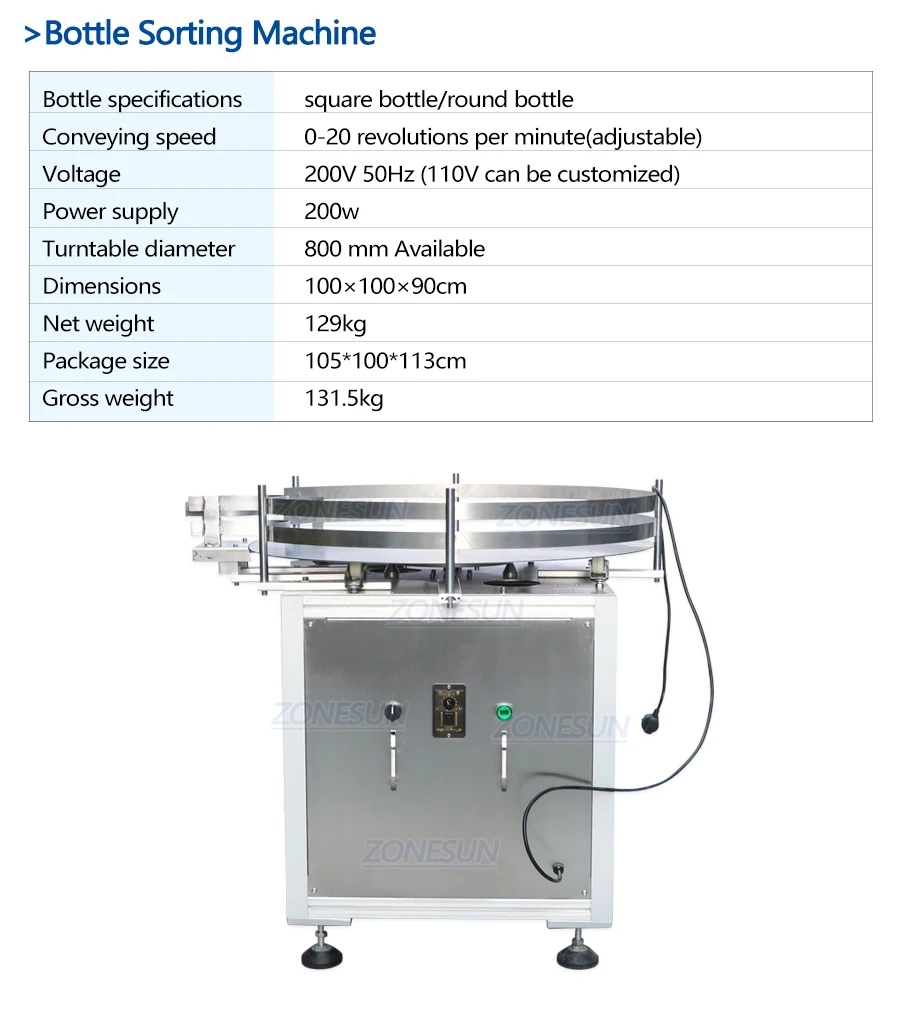

Bottle specifications | square bottle/round bottle | ||||||
Conveying speed | 0-20 revolutions per minute(adjustable) | ||||||
Voltage | 200V 50Hz (1 10V can be customized) | ||||||
Power supply | 200W | ||||||
Turntable diameter | 800 mm Available | ||||||
Dimensions | About 1000*1000*900mm | ||||||
Package size | About 1050*1000*1130mm | ||||||
Net weight/Gross weight | About 129kg/131.5kg | ||||||

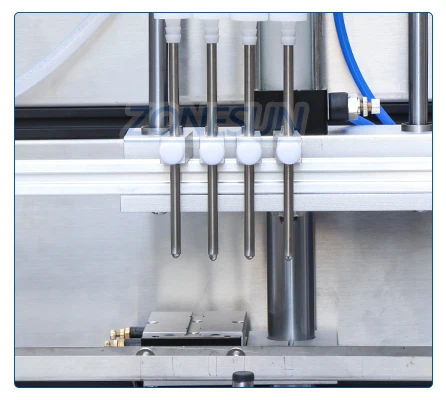

Filling Nozzles with anti-dripping function,can control each nozzle separately. We also have the 2/6/8 nozzles flling machine,please send us message if you need it.

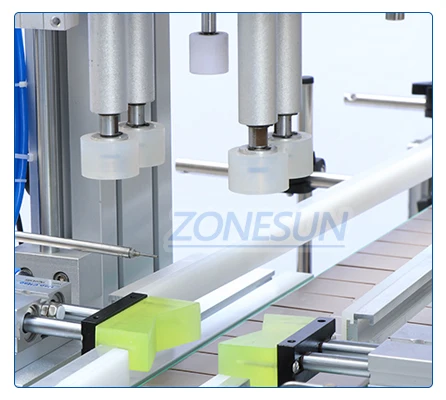

Capping Chuck
Suitable for different kinds of bottle
caps.The capping time,pressing
time can be adjusted by operation panel.
