ZONESUN ZS-FAL90 L configuration Automatic Bottle Labeler Liquid Filling Capping And Labeling Machine Plastic Bottle Round

  • >=1 Sets
    $13,999.99
Power:
About 5KW
Model Number:
ZS-FAL90
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized service (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Applicable Industries:
Food & Beverage Factory, Food Shop, Food & Beverage Shops
After Warranty Service:
Video technical support, Online support
Local Service Location:
none
Showroom Location:
none
Condition:
New
Application:
Food, Beverage
Packaging Type:
Box
Packaging Material:
wood
Automatic Grade:
Automatic
Driven Type:
Electric and pneumatic
Voltage:
110V/220V
Place of Origin:
Guangdong, China
Brand Name:
ZONESUN
Weight:
About 800kg
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, No overseas service provided
Key Selling Points:
Full Automatic
Machinery Capacity:
Other
Filling Material:
Milk, Water, Juice
Filling Accuracy:
≤±1%
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pressure vessel, Pump, PLC, Gear, Bearing
Supply Ability
Supply Ability:
99 Set/Sets per Year
Packaging & Delivery
Packaging Details
Our products are packed in boxs. We will check that if the machine can run before it is sent out. When you receive the goods, please open the package to check out if the goods are in good condition before the courier. If the boxs are damaged or other situations happen, please contact us in time.
Port
Guangzhou
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

Description:

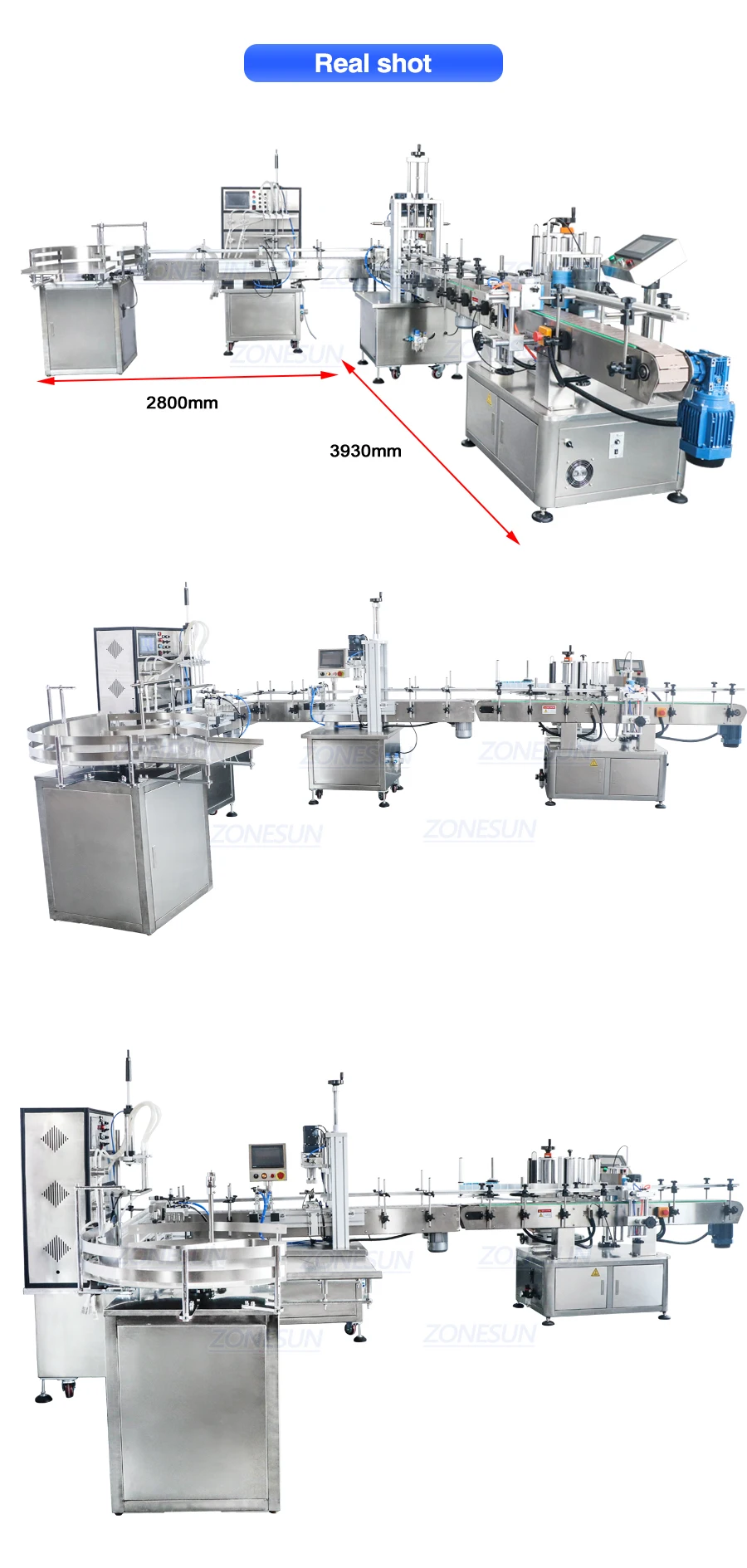

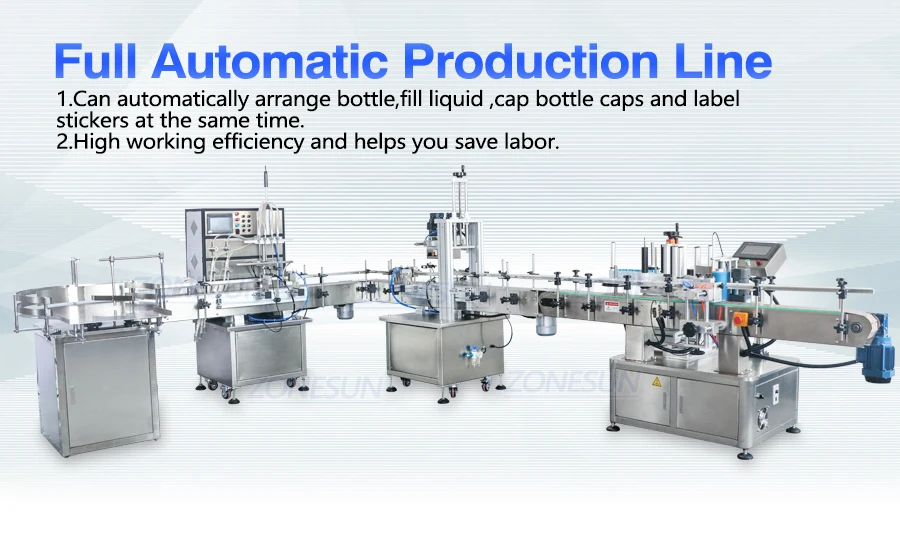

This production line can automatically arrange bottles,fill liquid and cap bottle,it helps to save production process and improve working efficiency.We can offer custom service for different kinds of materials,make these machines can match your material better. It is widely used in food,beverage,cosmetics and pharmaceutical industries

Suitable Bottle Diameter
20-100mm
Suitable Bottle Height
30-120mm
Working Speed
10turn/min
Power
200W
Power Supply
220V/50-60HZ
Net weight
About 109.5kg
Package size
About 115*100*132cm
Gross weight
About 155kg

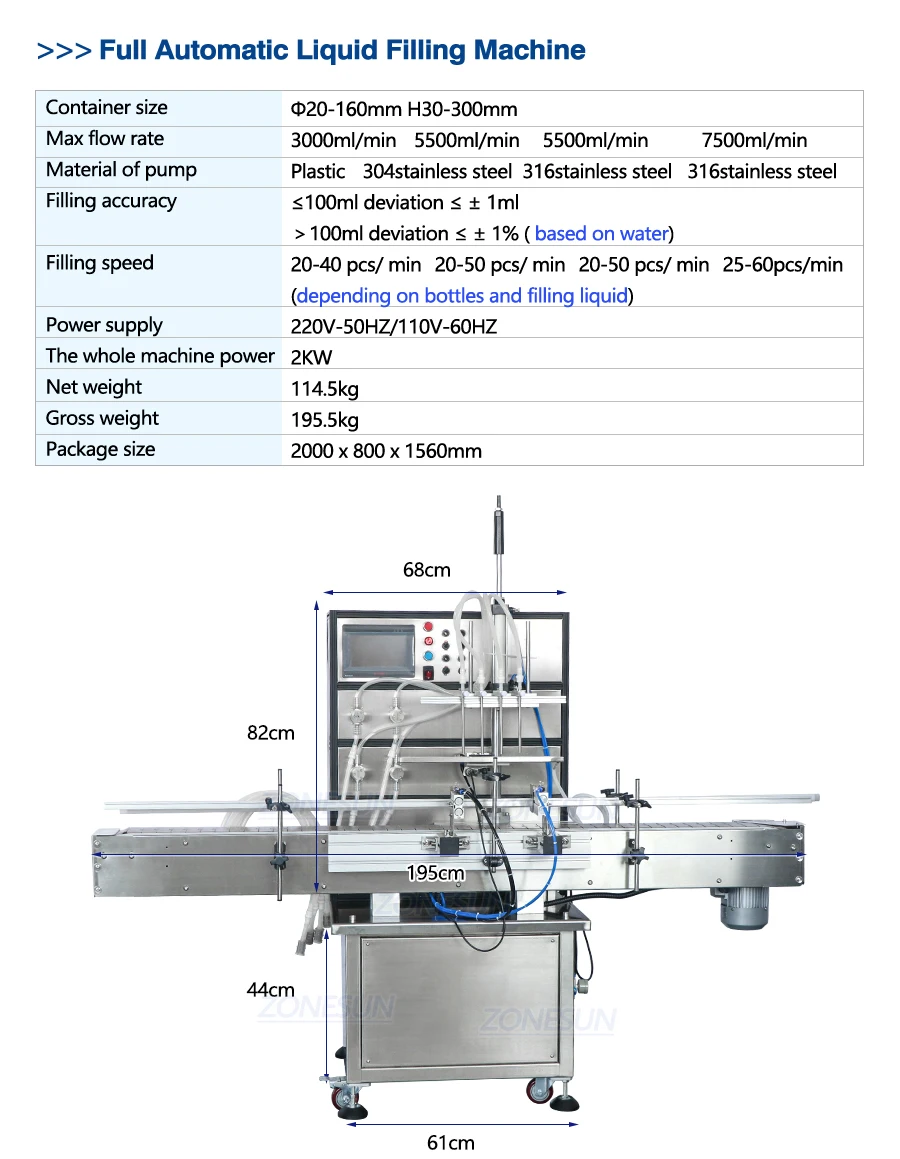

Container size
φ20-160mm H30- 300mm
Max flow rate
3000ml/min
5500ml/min
5500ml/min
7500ml/min
Material of pump
Plastic
304stainless steel
316stainless steel
Filling accuracy
≤100ml deviation ≤±1ml
> 100ml deviation ≤±1% ( based on water)
Filling speed
20-40pcs/min
20-50pcs/min
20-50pcs/min
25-60pcs/min
Power supply
220V-50HZ/110V-60HZ
The whole machine power
2KW
Net weight
About 114.5kg
Gross weight
About 195.5kg
Package size
About 2000*800*1560mm

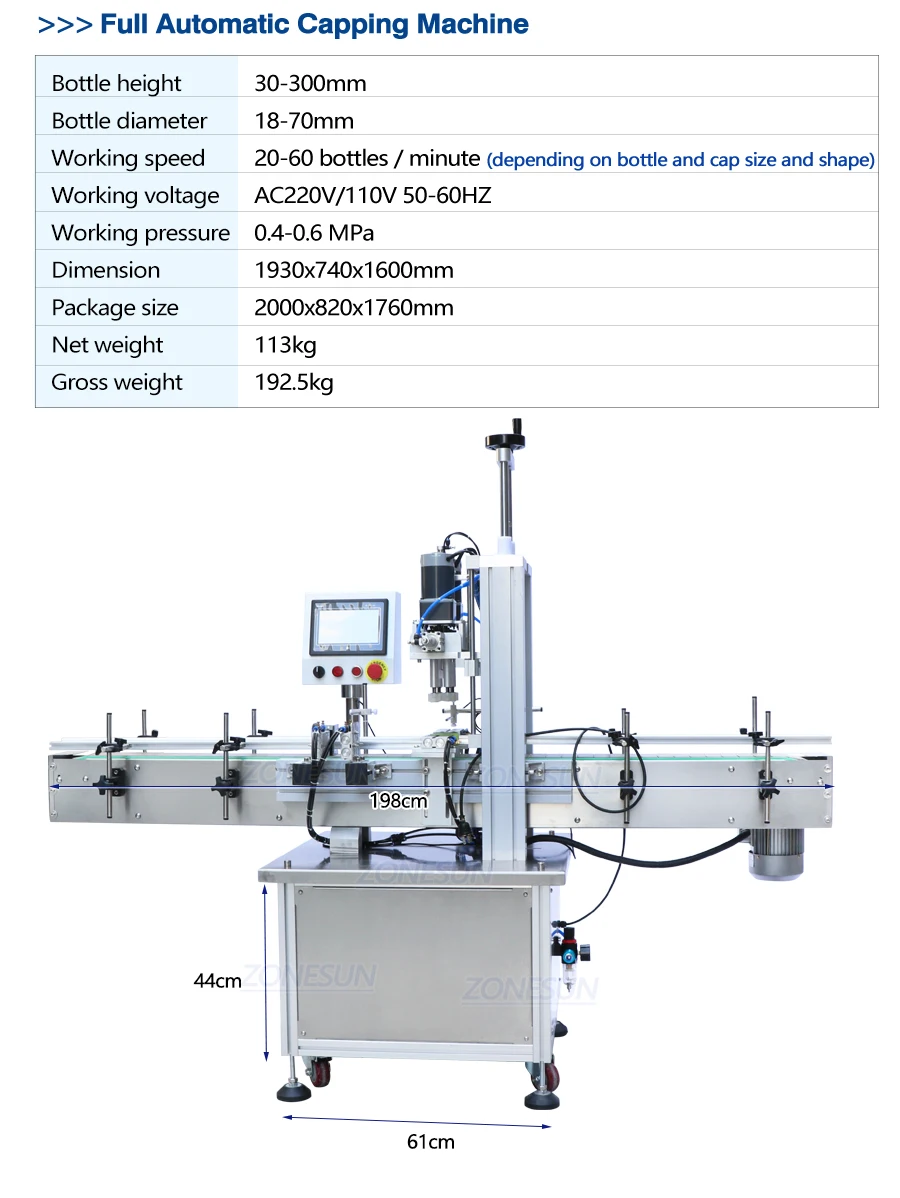

Bottle height
30-300mm
Bottle diameter
18-70mm
Working speed
20-60 bottles / minute (depending on bottle and cap size and shape)
Working voltage
AC220V/110V 50-60HZ
Working pressure
0.4-0.6 MPa
Dimension
1930*740*1600mm
Package size
2000*820*1760mm
Net weight
113kg
Gross weight
192.5kg

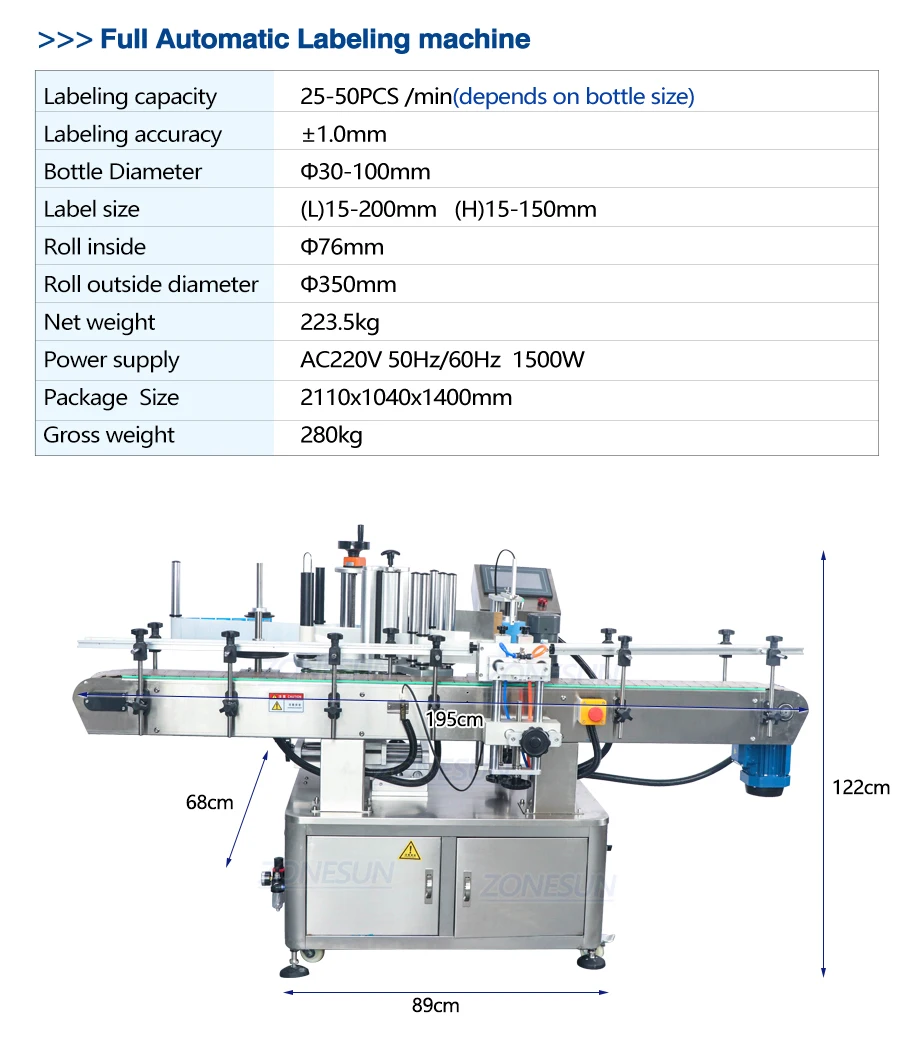

Labeling capacity
25-50PCS /min(depends on bottle size)
Labeling accuracy
±1mm
Bottle Diameter
φ30- 100mm
Label size
(L)15-200mm (H)15-150mm
Roll inside
φ76mm
Roll outside diameter
φ350mm
Power supply
AC220V 50Hz/60Hz 1500W
Package Size
2110x1040x1400mm
Net weight
223.5kg
Gross weight
280kg
