ZONESUN Semi Automatic Piston Liquid Filling Machine,Liquid Filler,Ointment Filler supply

  • 1 - 4 Sets
  • >=5 Sets
Model Number:
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Quick Details
Packaging Type:
Bags, Bottles
Packaging Material:
Filling Machine
Apparel, Chemical, Food
Automatic Grade:
Driven Type:
220V or 110V
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
filling machine
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
777 Set/Sets per Day
Packaging & Delivery
Packaging Details
Our products are packed in cartons. We will check that if the machine can run before it is sent out. When you receive the goods, please open the package to check out if the goods are in good condition before the courier. If the cartons are damaged or other situations happen, please contact us in time.
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
Product Description

Equipment Introduction

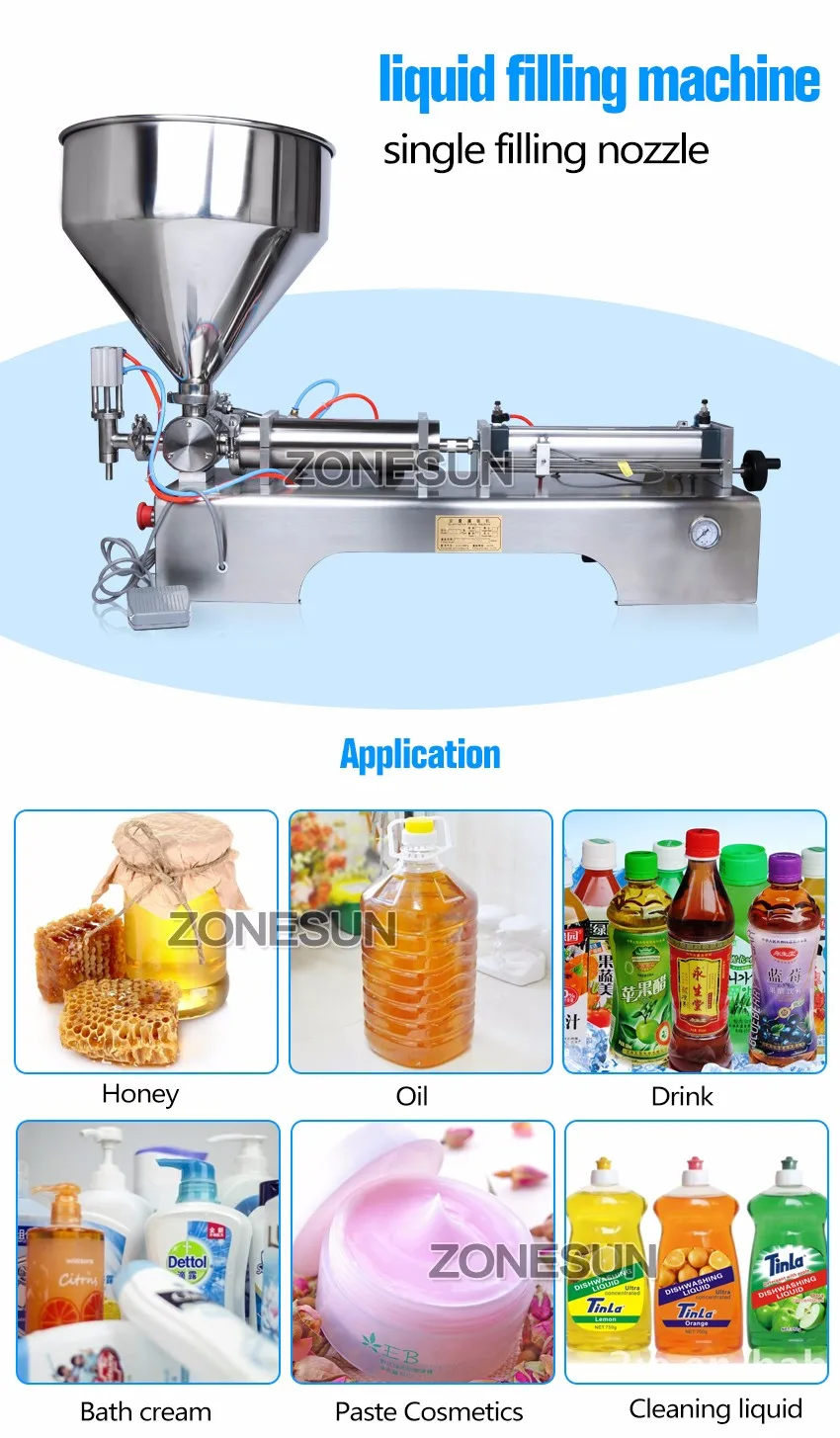

This series filling machine is foreign advanced filling machine technology transformation and innovative products, its structure is simple and reasonable precision, easy to operate, user-friendly design more in line with the requirements of the modern enterprise. Widely used in pharmaceutical, cosmetic, food, pesticides and special industries, is a high-viscosity fluid, paste quantitative filling the ideal equipment.

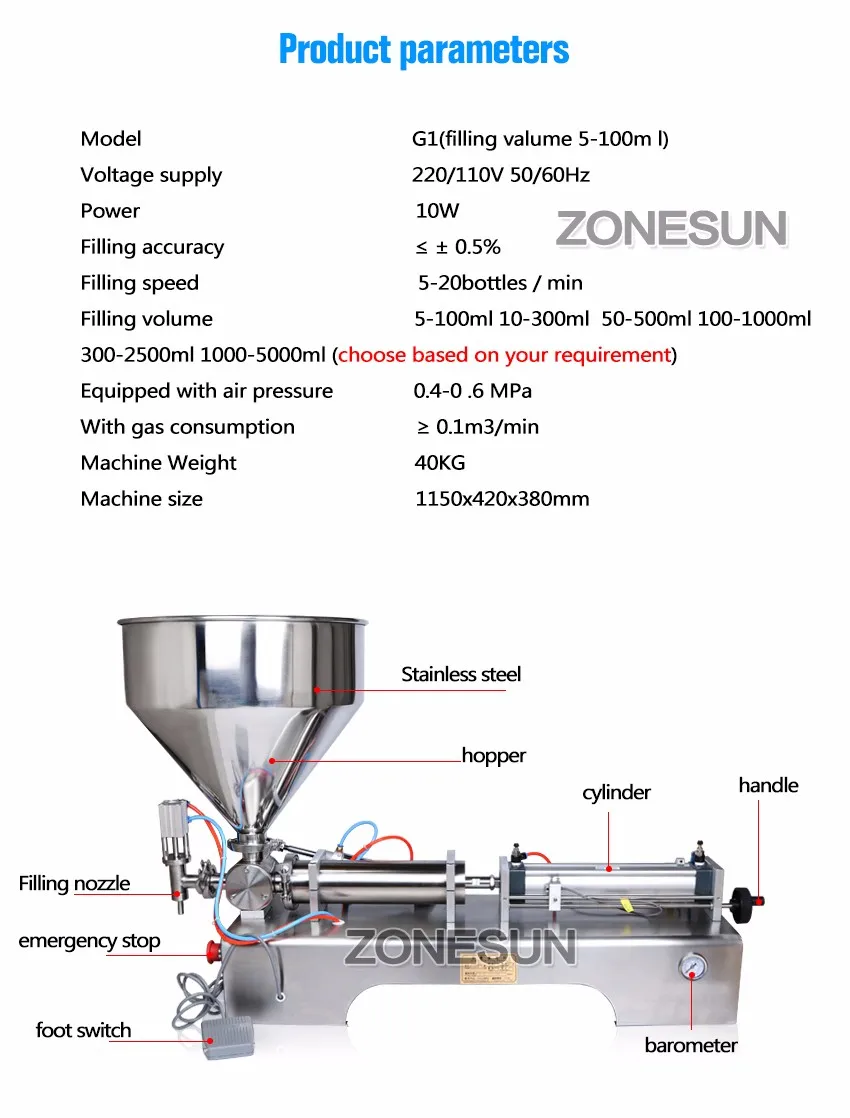

Voltage supply
220/110V 50/60Hz
Filling accuracy
 ≤ ± 0.5%
Filling speed
5-20bottles / min
Filling volume
 5-100ml,10-300ml,100-500ml,100- 1000ml 300-2500ml 1000-5000ml(choose based on your requirement)
Equipped with air pressure
0.4-0 .6 MPa
With gas consumption
≥ 0.1m3/min
Machine Weight
Machine size

Main Features

220/110V 50/60HZ (if you need 110v , please inform us ,then we will make 110v for you )
· Approximate Speed 20-40 pcs/min (depending on operator speed, product density, draw length, a fill speed, among others)
· All Parts in Contact with Product are Food Grade (SS 304/316)
· Includes one 30Liter Hopper
· Stainless Steel Construction
· Rugged Rotary Valve System Design
· Pneumatic Operation
· Silica gel O-ring System(cam bear 200 Celsius degree)
· Piston Feed Speed Adjustment
· No-drip Option Included and Installed
· Extremely Accurate (+/- 1%)
· Extremely Easy to Clean and Maintain
· Sanitary Stainless Steel Quick Disconnect Fittings
· Extremely Easy to Operate
· Quick Connect/Disconnect Pneumatic Fittings.

Control Panel:

Semi Auto/Continuous Operation Selector Switch
Air Pressure Gauge
Air Intake Pressure Adjustment
Piston Volume Adjust


Air Consumption 3-5KG 0.4-0.6MPa
Wearing parts : Silica gel O-ring System (when delivery, we will prepared enough for you use in one year. Customer can buy in the future in their country)

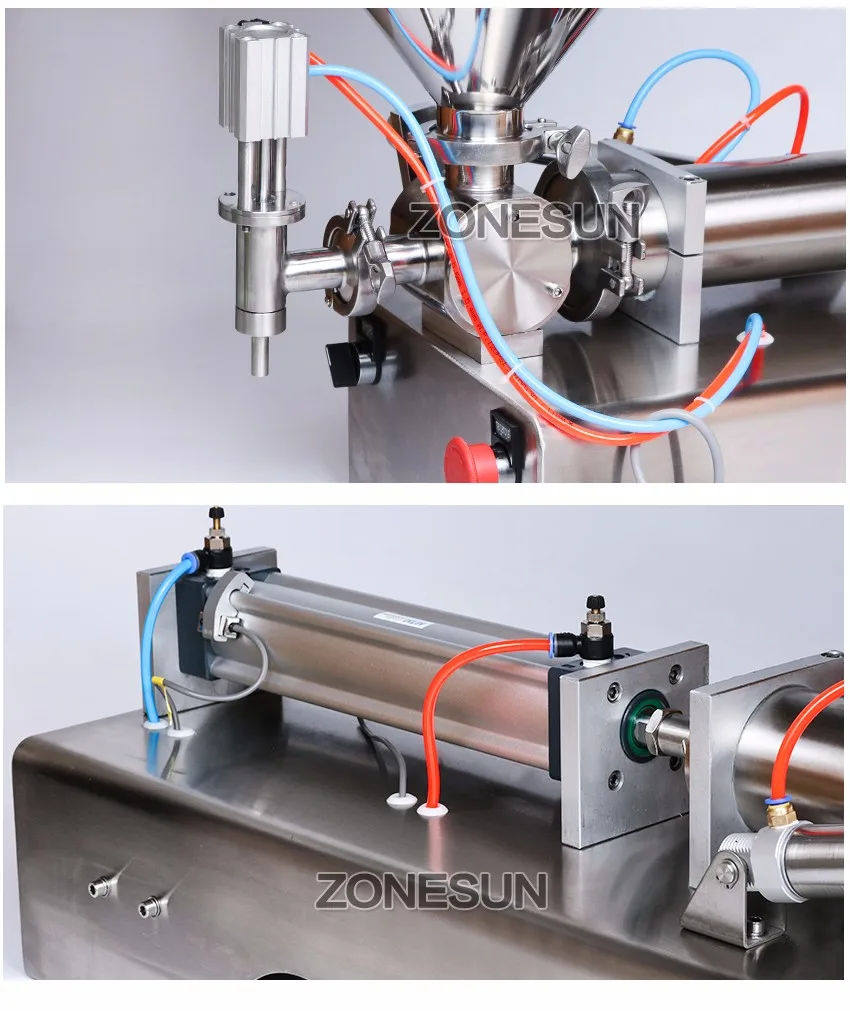

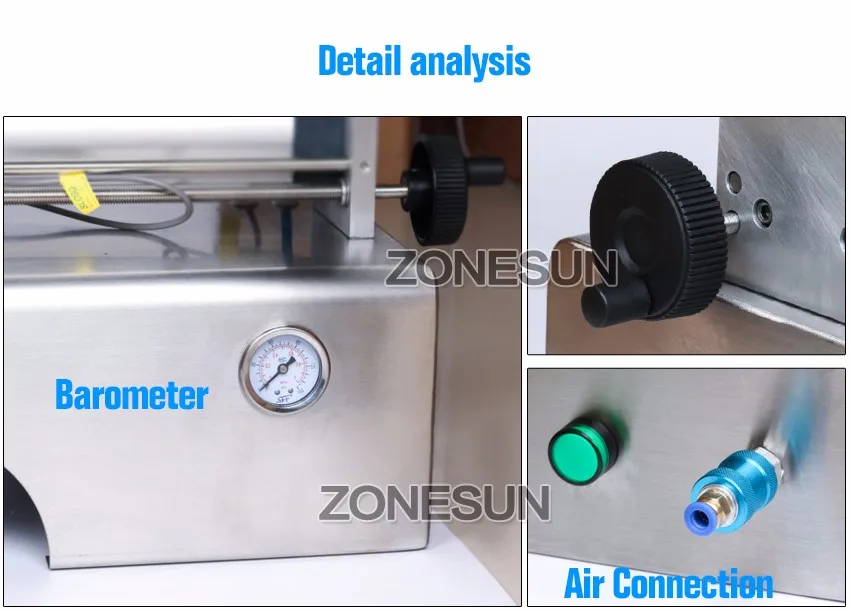

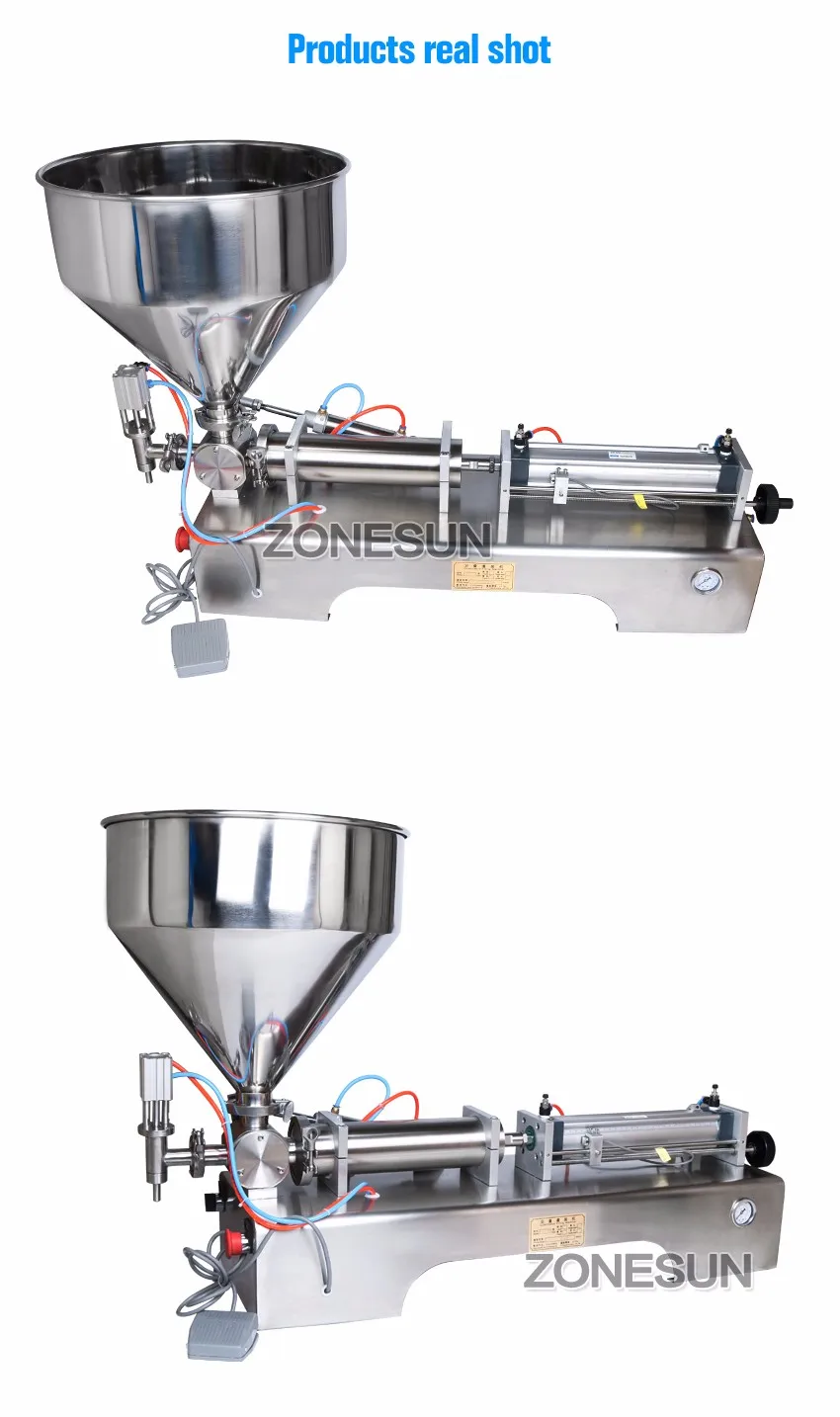

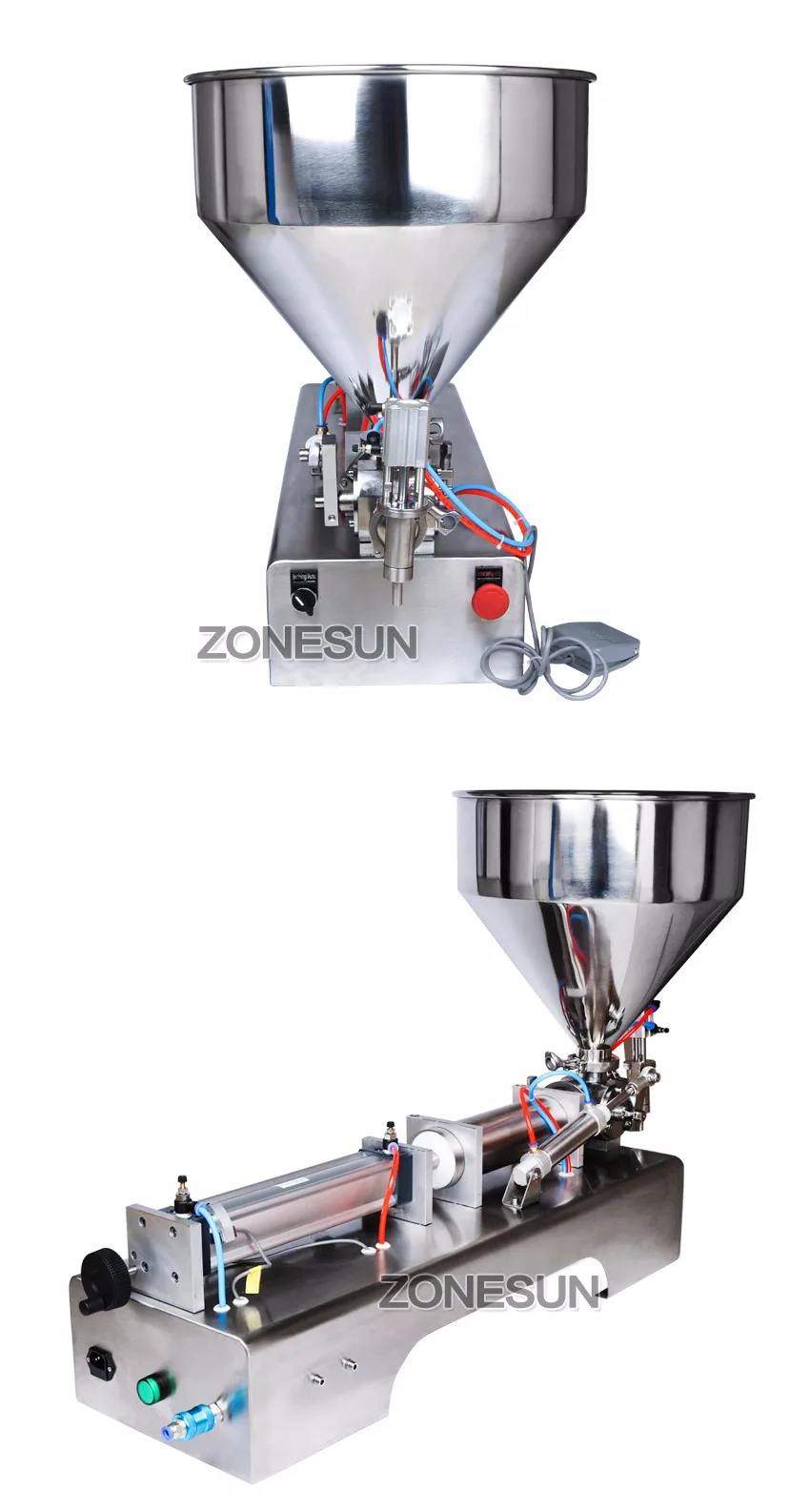

Detailed Images
Our Company
Related Products

SIngle head filling machine

Double head filling machine

Improve work efficiency


Four head filling machine

Four head work together

Six head filling machine

Each head can work alone

Eight head filling machine

Improve work efficiency

Ten head filling machine

Improve work efficiency

5-50ml Paste filling machine

honey/bath gel/Nail polish

pneumatic filling machine

Improve work efficiency

pneumatic filling machine

use on factory

Double head filling machine


pneumatic filling machine

honey/bath gel/Nail polish

Double head filling machine

Improve work efficiency

Mix filling machine

Chili sauce/sauce bag

Auto paste filling machine

honey/bath gel/Nail polish

Auto liquid filling machine



Q1: Are you factory or trading company?
A: We are factory or manufacturer.

Q2: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.

Q4: How could I get the spares on machines?
A:We will send extra sets of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.

Q5: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection. Our factory already highest stars of the grade.

Q6.What's the payment terms and trade terms for new customers?

A: Payment terms:T/T,L/C,D/P,O/A, Western Union etc.

Q7:What's the Minimum Order Quantity and warranty?

A:MOQ:1 set
Warranty:12 months,some customized products will be 24 months.
