ZONESUN ZS-FAL180P6 Jar Honey Hand Sanitizer Liquid Automatic Water Bottle Filling Capping And Labeling machine

FOB Reference Price:Get Latest Price
$14,672.49 - $16,161.99 / Set | 1 Set/Sets (Min. Order)
Power:
About 3400W
Model Number:
ZS-FAL180P6
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized service (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Machinery Capacity:
Other
Filling Accuracy:
≤±2%
Packaging Material:
wood
Filling Material:
Water, Oil, Juice
Type:
Filling Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Application:
Food, Beverage
Packaging Type:
Box
Automatic Grade:
Automatic
Driven Type:
Electric and pneumatic
Voltage:
110V/220V
Place of Origin:
Guangdong
Brand Name:
ZONESUN
Dimension(L*W*H):
Customized
Weight:
Customized
Certification:
CE
After-sales Service Provided:
Online support, Video technical support, Free spare parts, No overseas service provided
Warranty:
1 Year
Key Selling Points:
Automatic
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine
Supply Ability
Supply Ability:
999 Set/Sets per Year
Packaging & Delivery
Packaging Details
Our products are packed in boxs. We will check that if the machine can run before it is sent out. When you receive the goods, please open the package to check out if the goods are in good condition before the courier. If the boxs are damaged or other situations happen, please contact us in time.
Port
Guangzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description

Description：

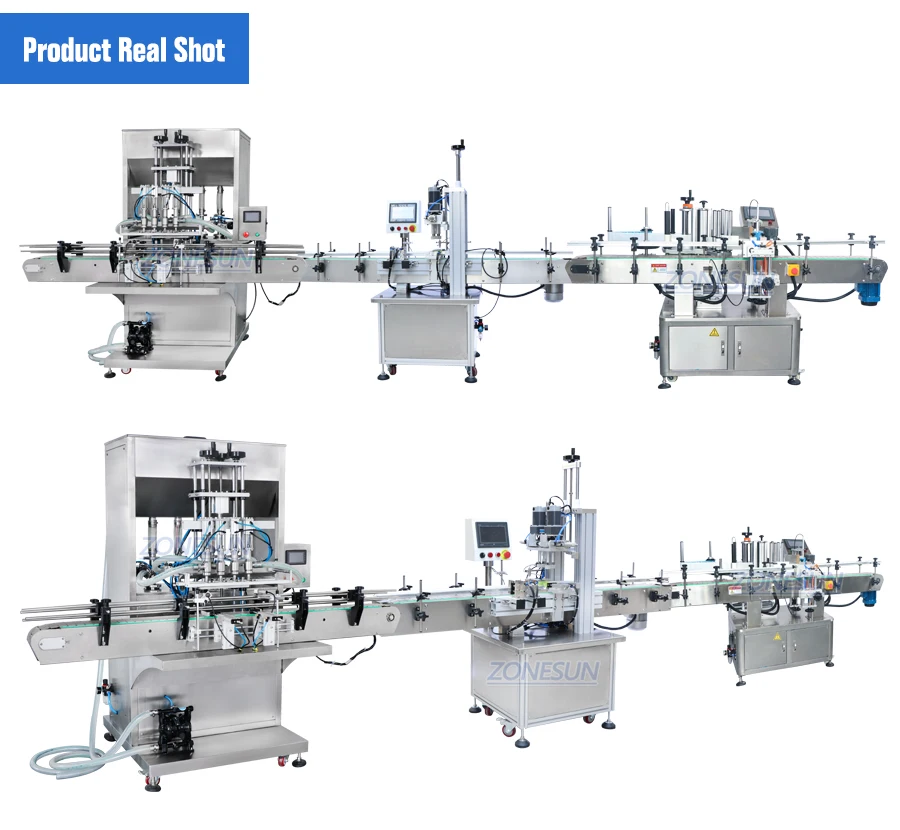

This production line can fill liquid,cap bottle lids and label stickers automatically,it is the ideal choice for producing drinks,cosmetics products or skin care products.The automated production can help you to reduce production cost and error,improve working efficiency and production quality.
Model
ZS-SV4GB
Voltage
110/220V 50-60HZ
Filling Range
5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Working Speed(base on water)
About 20-80 bottles/min
Filling Accuracy
≤2%
Conveyor size
2000*100mm(L*W)
Size of filling nozzle
OD15mm
Size of air compressor connector
Φ8mm
Machine dimension
About 905*1100*1760mm
Machine weight
About 248kg
Power of whole machine
800W
Bottle Height
30-300mm
Cap Diameter
18-70mm
Botle Diameter
20-160mm
Working Speed
20-60 bottles / minute (depending on bottle and cap size and shape)
Working Voltage
AC220V/110V 50-60HZ
Wokingn Pressure
0.4-0.6MPa
Dimension
About 1930x740x1600mm
Packing Size
Anout 2000x820x1760mm
Weight
About 150KG
Size Of Air Compressor Connector
OD 8mm
Model
ZS-TB260 Labeling Machine
Power supply
AC220V 50Hz/60Hz 1500W
Labeling capacity
25- 50PCS /min(depends on bottle size)
Labeling accuracy
±1.0mm
Suitable Botle Diameter
φ30-100mm
Label size
(L)15-200mm (H)15-150mm
Roll inside diameter
φ76mm
Roll outside diameter
φ350mm
Conveyor Size
1950(L)*100mm(W)
Machine size
About (L)2000*(W)1400*(H)1300(mm)
Packing Size
About 2120*940*1500mm

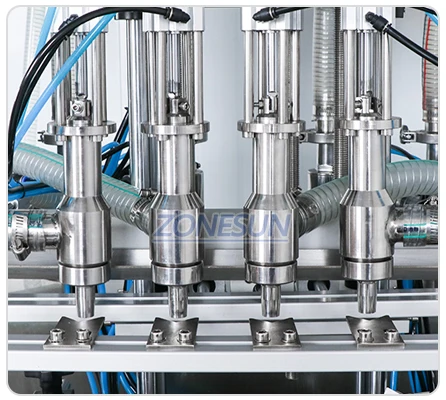

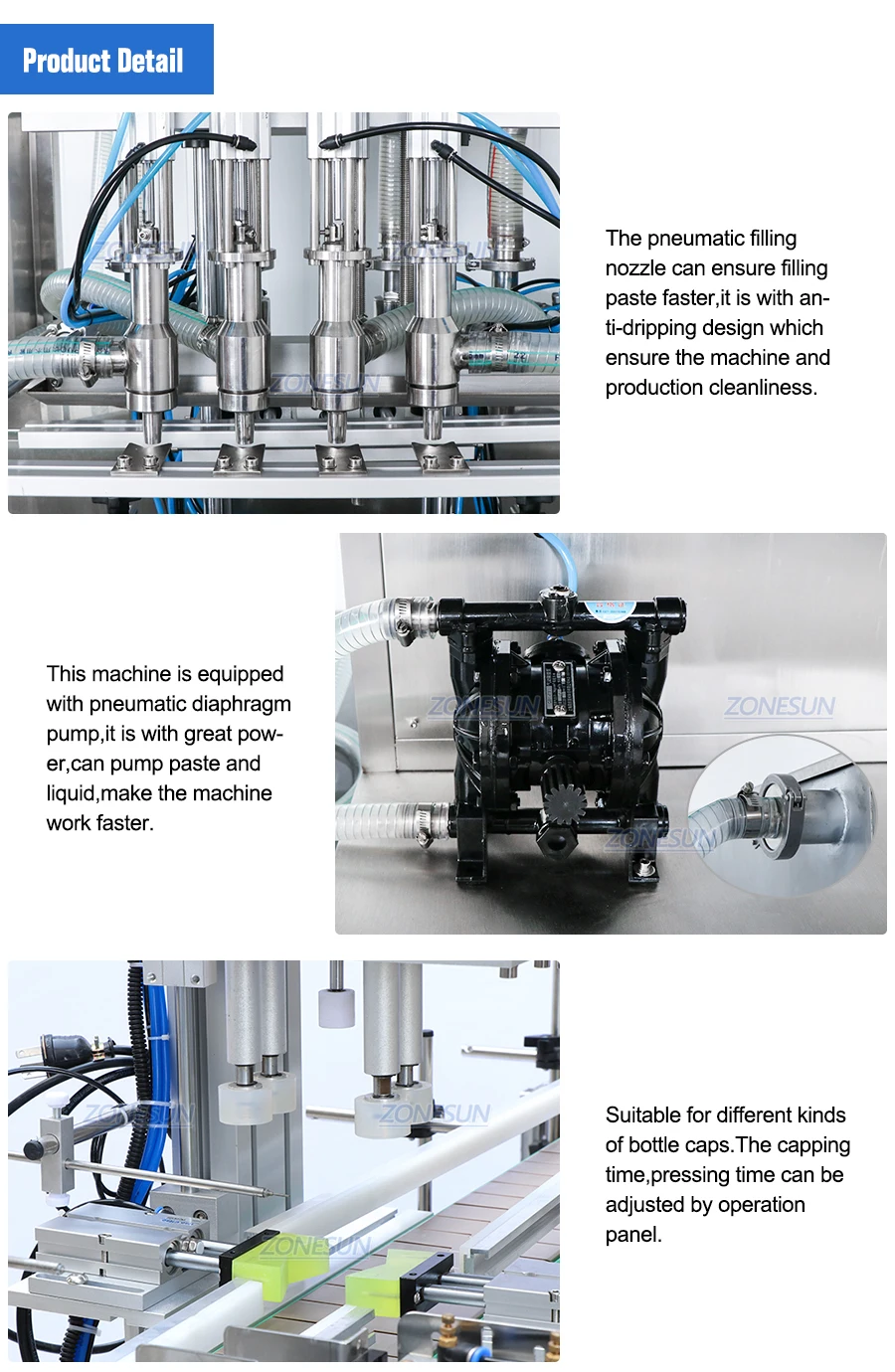

The pneumatic filing nozzle can ensure filling paste faster,it is with antidripping design which ensure the machine and production cleanliness.

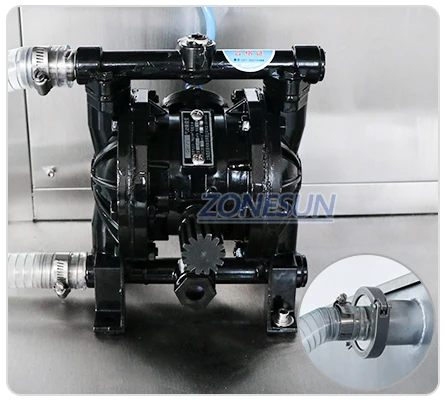

This machine is equipped with pneumatic diaphragm pump,it is with great power,can pump paste and liquid make the machine work faster.





Suitable for different kinds of bottle caps.The capping time,pressing time can be adjusted by operation panel.





Can detect the bottle once you the bottle pass through,save a lot of time and help you improve working efficiency.The sensitivity of the electric eye can be adjusted.

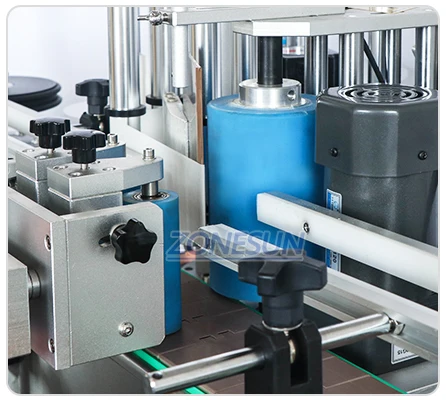

Scrolling to label stickers,this machine is suitable for single side or double side labeling stickers on round bottles.It works accurately and helps to improve working efficiency and offer better labeling effect.

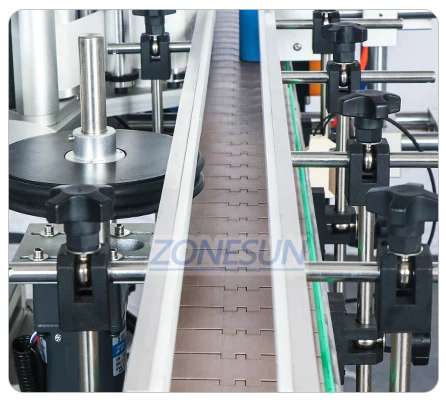

The conveyor width can be adjusted according to the bottle diameter.The transferring speed is adjustable by operation panel.
